Filter Housing

Housing Specification List

The tables below show the configuration, materials, design pressure, and other information on each product, helping you to select optimal products that meet your needs.

Multiple type

Product Type GZ / GY SMC SSC MZ GEX-TA
Adaptive Filter Size（mm） 250, 500, 750 250, 500, 750 125, 250, 500, 750 250, 500, 750 250, 500, 750
Adaptive Filter and cap code CZ, PZ, F, 0 CZ, PZ, F, 0, 5, 7 0, 5, 7 MN, E, W CZ, PZ, F
Number of filters installed
（pcs）		 3 , 6 3 ~ 60 3, 6, 12, 24, 36 3 ~ 33 3 , 6
Housing material SUS304 SUS304 SUS304 SUS304 SUS304
Gasket / O-ring Material NBR, EPDM, Silicone, FKM NBR, EPDM, Silicone, FKM NBR, EPDM, Silicone, FKM, PTFE, FEP Encapsulated FKM NBR, EPDM, Silicone, FKM NBR, EPDM, Silicone, FKM
Inner surface treatment Pickling Pickling Buffed(#400) Pickling Buffing (# 250)
Design Pressure(MPa at 40 degC) 0.49 0.69 0.69 0.98 0.69
Port size Rc 1-1/4 ~ Rc 2 50A～150A JIS10K FF IDF 2S～5S • Ferrule 80A～250A JIS10K FF IDF 1S～1.5S • Ferrule
Advantages
  • Excellent cost performance
  • Easy filter replacement (no tools required)
  • Customizable to desired specification
  • Selectable housing sizes
  • Easy disassembly and cleaning
  • Customizable to desired specification
  • Selectable housing sizes
  • Space-saving installation
  • Wide range of fluid compatibility
  • Fluid does not easily stagnate
  • Reduction of liquid loss
  • Easy disassembly and cleaning

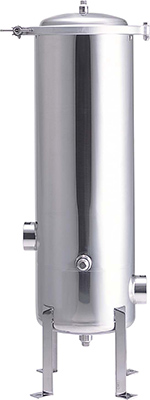

GZ / GY
SMC

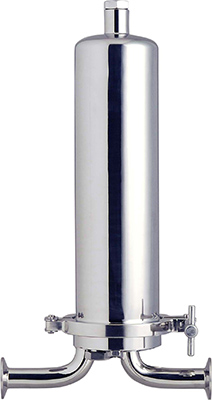

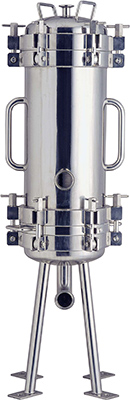

SSC

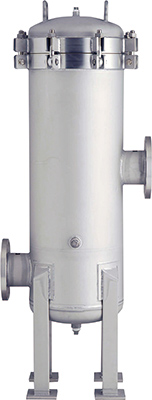

MZ

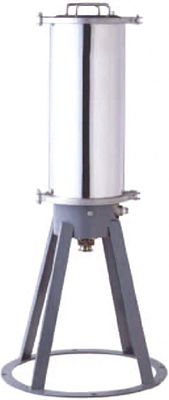

GEX-TA

Single type

Product Type RA / RB RC GA GB SHC
Adaptive Filter Size（mm） 250 250 250, 500 125, 250, 500 250, 500
Adaptive Filter and cap code CZ, PZ, F CZ, PZ, F, 0 CZ, PZ, F CZ, PZ, F, 0 CZ, PZ, F
Housing material ABS + AS resin PP SUS304 SUS316 SUS304
Gasket / O-ring Material NBR, EPDM, Silicone, FKM NBR, EPDM, Silicone, FKM NBR, EPDM, Silicone, FKM NBR, EPDM, Silicone, FKM NBR, EPDM, Silicone,
FKM, PTFE
Inner surface treatment - - Head: Electropolishing, Shell: Acid pickling Pickling Pickling
Design Pressure（MPa at 40℃） 0.49 0.49 0.49 0.49 1.18
Port size Rc 3/4 Rc 3/4 Rc 3/4 Rc 3/4 Rc 3/4
Advantages
  • Lightweight and cost effective
  • Connectable to stainless steel piping (RB type recommended)
  • Transparent and visible from the outside
  • Lightweight and cost effective
  • Excellent chemical resistance to acids, alkalis, etc
  • Space-saving when replacing filters
  • Wide range of fluid compatibility
  • Easy filter replacement (no tools required)
  • Wide range of fluid compatibility
  • Can be used in applications with high working pressure
  • Easier to remove than conventional flanges

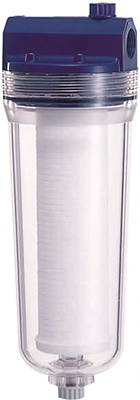

RA / RB

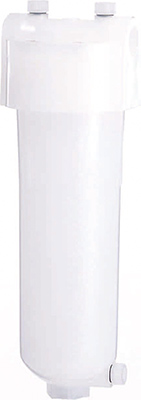

RC

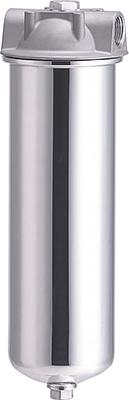

GA

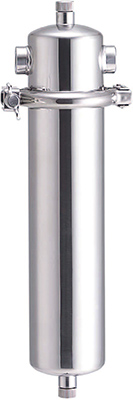

GB

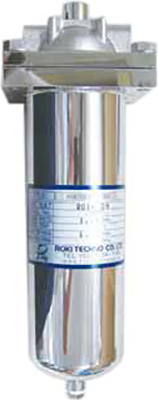

SHC
Product Type SSC MA GEX-WO GEX-PLY UD
Adaptive Filter Size（mm） 125, 250, 500, 750 250, 500, 750 250, 500 250, 500 25
Adaptive Filter and cap code 0, 5, 7 MN, E, W *1 CZ, PZ, F Y Y
Housing material SUS304 SUS316 SUS304 SUS304 SUS304
Gasket / O-ring Material NBR, EPDM, FKM,
Silicone, PTFE,
FEP Encapsulated FKM		 NBR, EPDM, Silicone, FKM NBR, EPDM,
Silicone, FKM,
PTFE Encapsulated *2		 NBR, EPDM,
Silicone, FKM		 NBR, EPDM,
Silicone, FKM,
PTFE Encapsulated *2
Inner surface treatment Buffed (#400) Pickling Buffed (#400) Buffed (#400) Buffed (#400)
Design Pressure（MPa at 40℃） 0.69 0.98 0.69 0.69 0.49
Port size IDF 1S • Ferrule Rc 1-1/2 IDF 1S • Ferrule IDF 1S • Ferrule G 1/4
Advantages
  • Easy disassembly and cleaning
  • Customizable to desired specification
  • Selectable housing sizes
  • Space-saving installation
  • Easy filter replacement
  • Reduction of liquid loss
  • Fluid does not easily stagnate
  • Space saving when replacing filters
  • Easy disassembly and cleaning
  • Fluid does not easily stagnate
  • Reduction of liquid loss
  • Easy disassembly and cleaning (No tools required)
  • Reduction of liquid loss
  • Simple filtration evaluation
  • Can be dismantled without tools
SSC

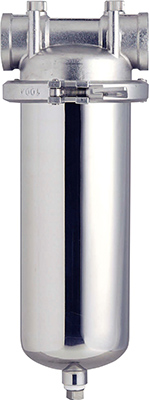

MA
GEX-WO

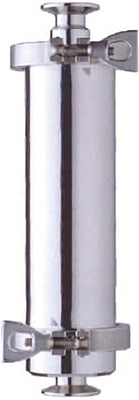

GEX-PLY

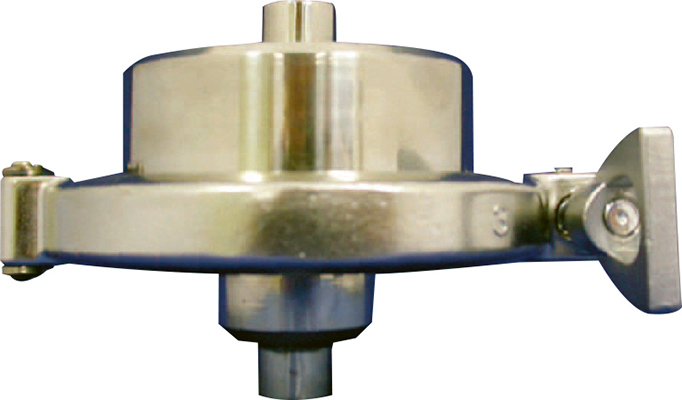

UD
  • *1 By changing the mounting method, it is also possible to accommodate Code CZ, PZ, and F.
    Please contact our sales representative for details
  • *2 It is a gasket, not an O-ring
